Overview
Like real rock bouncers, the Axial RBX10™ Ryft™ 1/10 4WD RTR is built to run at high speeds over rugged, rocky trails. Exclusive Spektrum™ technologies such as Smart telemetry and AVC traction control enable all drivers to enjoy unstoppable performance.

Features

• Solid axles front and rear with universal axle joints
• Robust tube chassis design
• Strong powertrain with 4S-capable brushless motor
• Full-time 4WD transmission

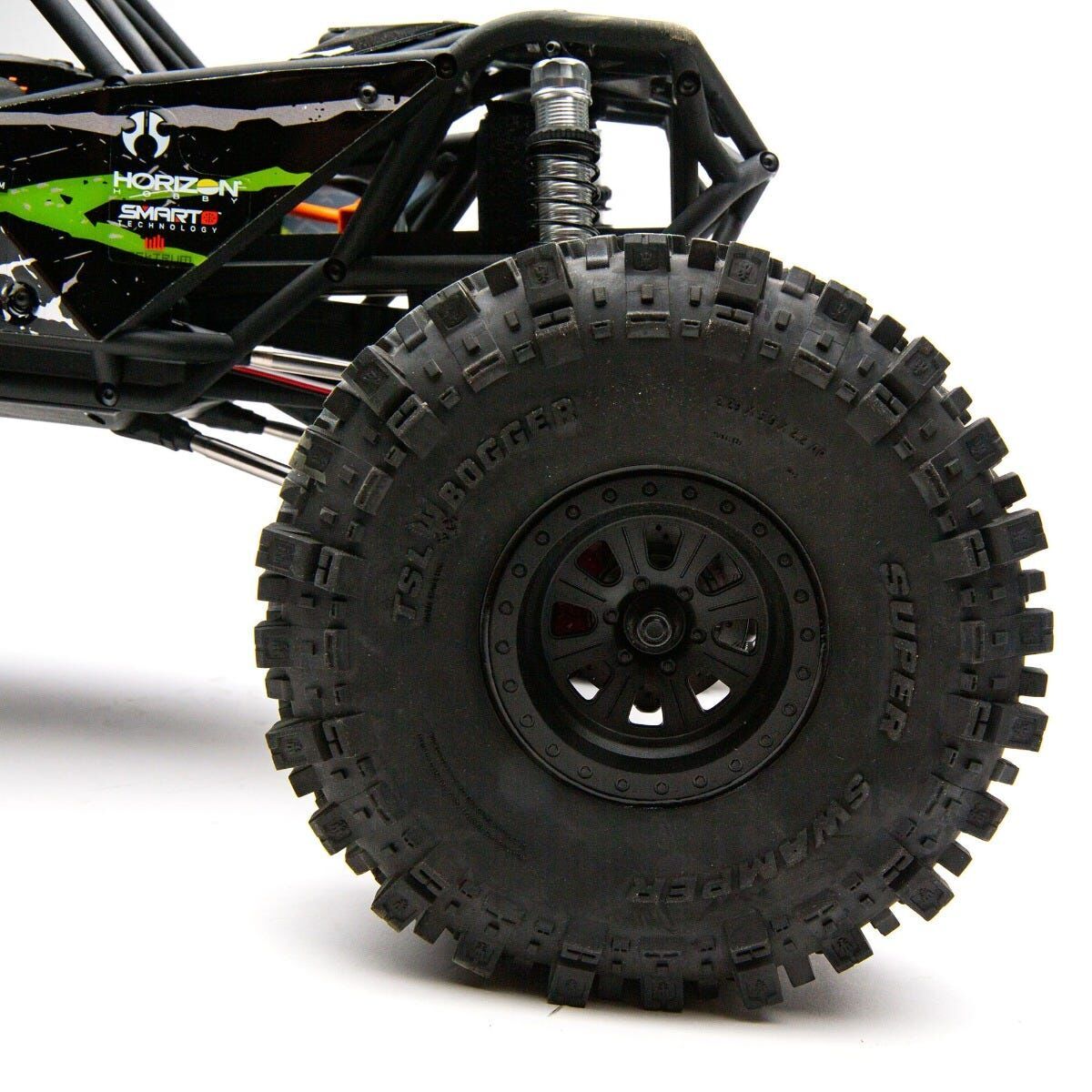

• Licensed Raceline wheels and Interco TSL (Three Stage Lug) Bogger tyres
• Long travel front and rear shocks
• Waterproof 15kg servo

Axial introduces another first with the 1/10 scale RBX10™ Ryft™ 4WD. This ready-to-run vehicle lets any RC driver experience the thrills of rock bouncer off-road action. Full-size rock bouncers refuse to stop — or even back down on the throttle — when facing steep climbs and massive rocks. So does the RBX10™ Ryft™ 4WD. This ground-up new Axial vehicle handles lots of abuse and loads of power!

The RBX10™ Ryft™ 4WD’s robust, custom tube chassis is engineered from a high-strength composite plastic that withstands the hard knocks of RC off-roading — even while moving at the high speeds produced by a strong powertrain featuring a 4S-capable, 2200Kv brushless motor. Both the front and rear axles boast a durable one-piece, moulded plastic, solid-axle design and metal differential cover. Licensed Interco TSL Bogger tires on Raceline wheels, aided by long-travel front and rear shocks, do their part to tame wild off-road tracks. These features, along with a full-time 4WD transmission, make the RBX10™ Ryft™ a fun vehicle to send over the trails at full throttle.

Exclusive Spektrum™ technologies, such as Smart telemetry and AVC traction control, help even new RC drivers enjoy unstoppable performance from the RBX10™ Ryft™ 4WD. Its Spektrum™ DX3™ radio uses DSMR technology for superior range, response, and interference resistance. The radio is also fully compatible with the Smart telemetry potential of the vehicle’s Spektrum™ Firma™ 130A Smart ESC. When using a Spektrum™ Smart LiPo battery, you’ll stay aware of on-board battery capacity with only a glance at the transmitter's handy voltage level indicator. When the voltage gets low, an alarm will sound.

The DX3â„¢ radio and SR6100AT receiver also support the on-demand traction control of Spektrumâ„¢ AVC (Active Vehicle ControlÂ) technology — included here for the first time in an Axial RTR vehicle. With an AVC system, you can dial in extra stability as needed when climbing hills or launching ledges without backing off the power. You have full-throttle freedom over rough terrain, slick surfaces and loose dirt!

The Axial RBX10™ Ryft™ 4WD is ideal for beginner to intermediate RC enthusiasts who are interested in the rock bouncing style of off-road driving over trails, dirt, gravel, rocks and more. It’s available with a striking orange or black factory-applied finish and requires nothing except a battery and charger.

SPEKTRUMâ„¢ DX3â„¢ 2.4GHz DSMRÂ TRANSMITTER

The included Spektrum™ DX3™ radio features exclusive DSMR technology for superior range, response, and interference resistance. It’s also fully compatible with the Smart telemetry potential of the vehicle’s installed Spektrum™ Firma™ 130A Smart ESC. Use a Spektrum™ Smart LiPo battery and you can follow its capacity at a glance on the DX3 transmitter's voltage level indicator. When the battery level gets low, an alarm will sound.

SPEKTRUMâ„¢ FIRMAâ„¢ 130A SMART ESC

The feature-packed, waterproof Firma™ 130A Smart ESC delivers power and intelligence all-in-one — no additional vehicle modules or links required. Compatible with 2S to 4S LiPo input, this brushless ESC gives your RBX10™ Ryft™ the ultimate drive while feeding important telemetry data straight to your DX3™ transmitter in real time.

SPEKTRUMâ„¢ SR6100AT DSMRÂ AVCÂ/TELEMETRY RECEIVER

Built around frequency-agile DSMRÂ technology, the Spektrumâ„¢ SR6100AT 6-channel receiver delivers superb range and response. It also features patented Spektrum AVCÂ (Active Vehicle Control) and full-range telemetry capabilities.

AVCÂ (ACTIVE VEHICLE CONTROLÂ)

The DX3â„¢ radio system supports the on-demand traction control of Spektrumâ„¢ AVCÂ (Active Vehicle ControlÂ) technology. With an AVCÂ system, you can dial in extra stability as needed to carve corners or nail jumps without backing off the power. You have full-throttle freedom over rough terrain, slick surfaces and loose dirt!

CUSTOM TUBE CHASSIS

The Axial RBX10™ Ryft™ was designed and styled with the life-size rock bouncers in mind. Its proven, high-strength composite plastic is engineered to withstand the hard knocks of rock bouncing.

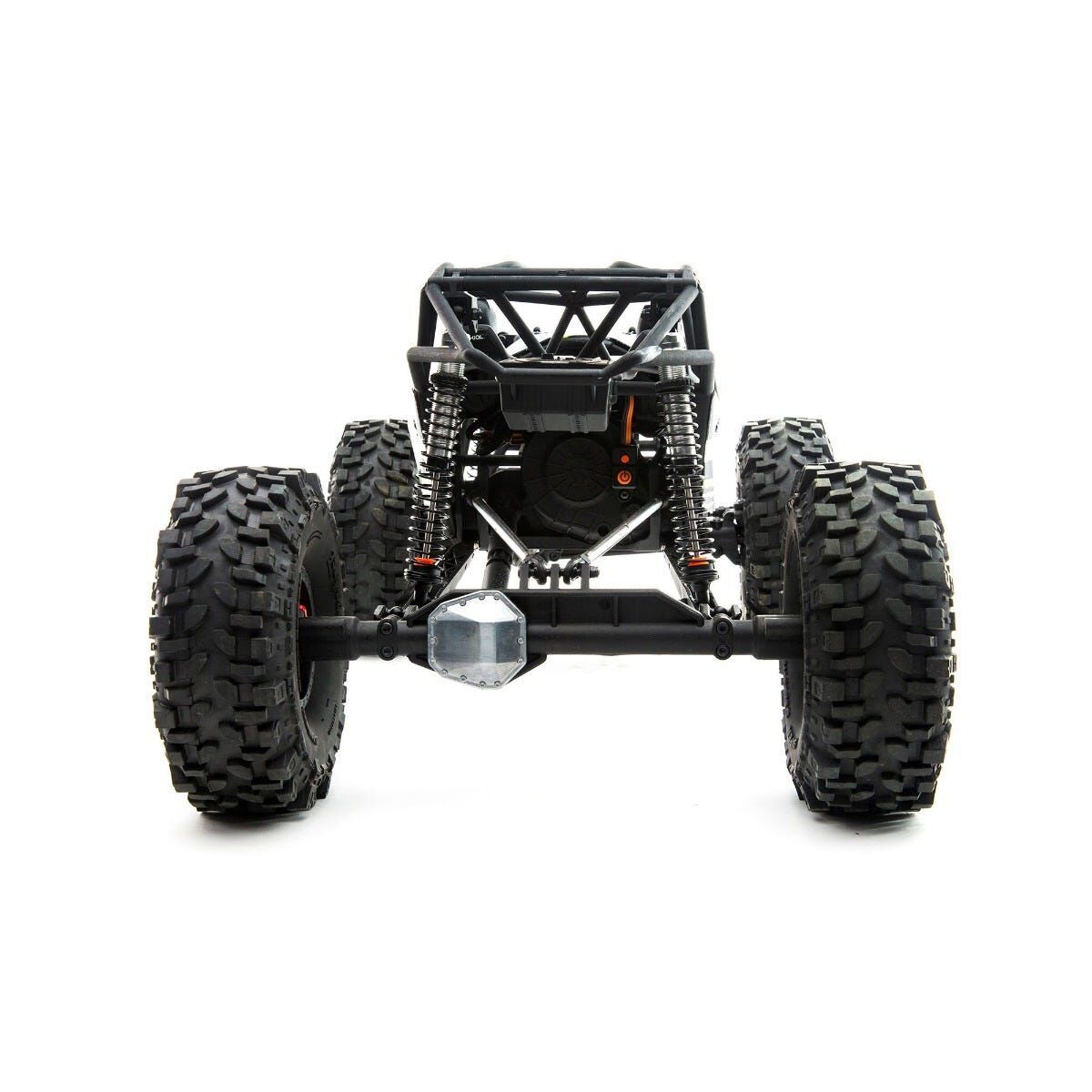

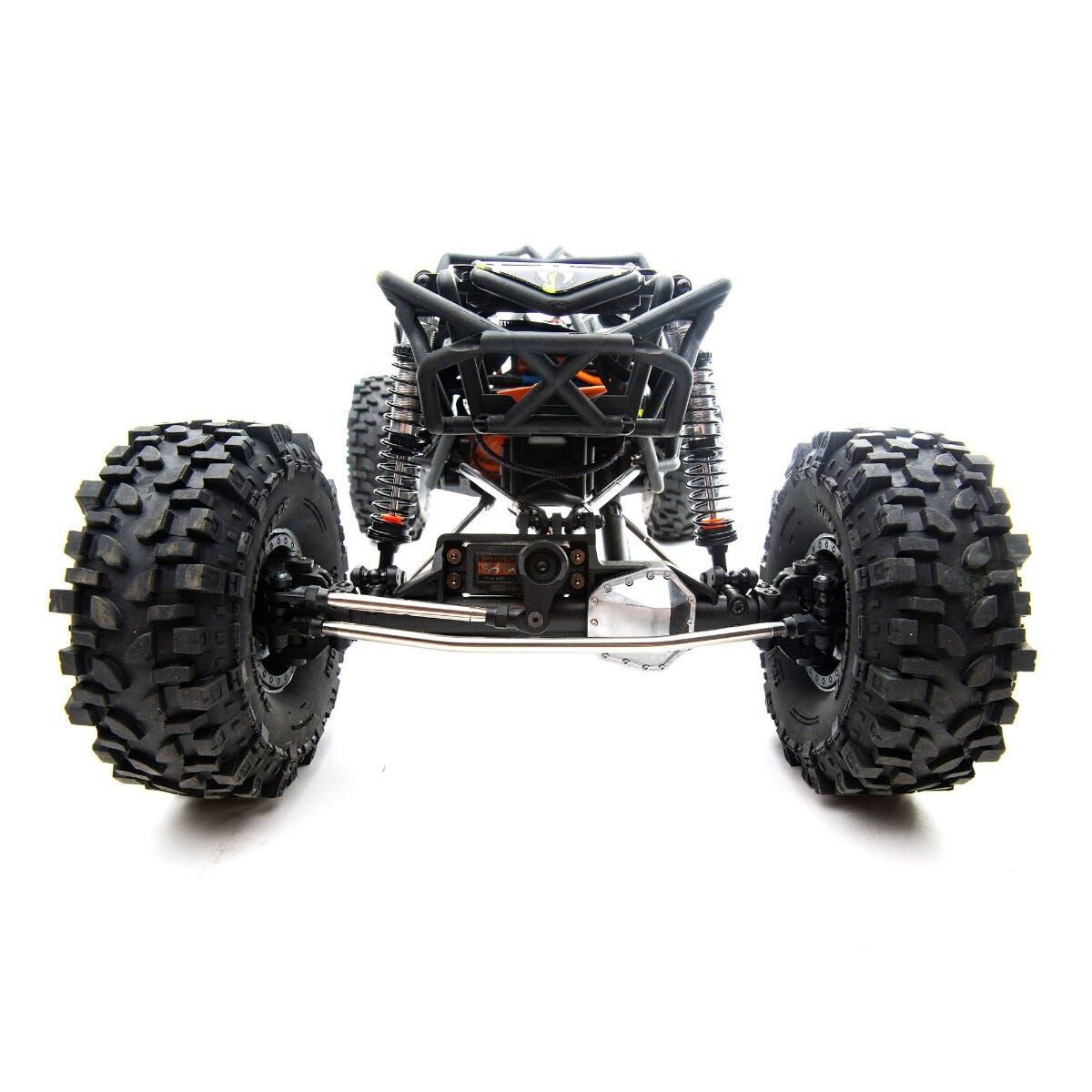

FRONT AND REAR SOLID AXLES

The RBX10™ Ryft™ 4WD is engineered to carry a lot of power over punishing off-road tracks — as evidenced by the durable one-piece, moulded plastic, solid axle design of its front and rear axles and the metal differential cover.

4-LINK SUSPENSION

The suspension geometry uses a 4-link design which is optimized to reduce axle steer and to provide the proper anti-squat and roll characteristics. The 4-link system also aids against suspension wrap-up in high-power applications

WHAT'S IN THE BOX?

(1) Axial RBX10â„¢ Ryftâ„¢ 1/10 4WD RTR

(1) Spektrumâ„¢ DX3â„¢ 3-Channel 2.4GHz DSMRÂ Radio Transmitter

(1) Spektrumâ„¢ SR6100AT 6-Channel DSMRÂ AVC/Telemetry Receiver

(1) Spektrumâ„¢ Firmaâ„¢ 130A Smart ESC

(1) 2200Kv Brushless Motor

(1) Product Manual

What you need

• LiPo battery
• Compatible charger

Specs
Completion Level- Ready-to-Run
Scale - 1/10
Length - 21.5 in (546.10mm)
Width - 12.75 in (323.85mm)
Height - 8.75 in (222.25mm)
Weight - 116.3 oz (3.29kg)
Ground Clearance - 3.25 in (82.55mm)
Wheelbase - 15.25 in (387.35mm)
Track - 12.75 in (323.85mm)
Front Track - 12.75 in (323.85mm)
Rear Track - 12.75 in (323.85mm)
Chassis - Injection Moulded Plastic
Suspension - Solid Axle Coil-Over
Shock Type - Front 5.11 in (130mm), Rear 5.70 in (145mm)
Drivetrain - 4WD
Differential - Bevel Gear
Wheel Type - Glue-on Raceline Monster Black
Wheel Diameter - 2.2 in (55.88mm)
Wheel Width - 1.6 in (40.64mm)
Tyre Compound - SBR45
Tyre Tread - Interco TSL Bogger
Tyre Diameter - 6.0 in (152.40mm)
Motor Type - Non-Sensored Brushless
Motor Size - 36x60
Engine Size - 2200Kv
Pinion - 17T
Spur Gear - 53T
Gear Pitch - 32-pitch
Rollout (Tyre Circumference) - 18 in
Speed Control Included - Spektrumâ„¢ Firmaâ„¢ 130A Smart
Radio - Spektrumâ„¢ DX3â„¢ 3-Channel DSMRÂ
Servos Included - Y
Body - Screened and decals
Ball Bearings - Full
Bushing Material - Metal
Experience Level - Beginner
Recommended Environment - All-Terrain
Is Assembly Required - No
