Especially designed for crawler fans!

"The first real car mode"

The direction of the motor is switchable in real time by using the idle channel on the transmitter.
Pull the trigger for "forward"
Push the trigger for "brake"
Pull the trigger with the "reverse channel" on will give you "reverse"
(Requires an open channel on the receiver)
This new feature will provide the user with a unique experience unlike any other.

Four running modes available.

Fits a variety of control habits and control needs;

- Forward with brakes.
- Forward, reverse with brakes.
- Forward and reverse.
- Real car running mode.

Real-time adjustment of drag braking force.

Adjust the drag brake force in real time!
With the Drag brake Force Signal connected to an open channel on the receiver, users can adjust the drag brake force on the fly without the need to connect the Programmer.
(Requires open channel on receiver)

Temperature control upgrade.

The New design reduces operating temperatures of the ESC by about 15 degrees improving reliability.
The ESC also has a fan mount to meet additional cooling needs.

BEC Upgrade.

The BEC Upgrade includes maximum output to 6A and provides 6V/7.4V/8.4V output options to support most of the servos on the market.

Multiple, easy to set parameters.

15 Programmable Items lets drivers easily tune their vehicle with the LED Programming Box connected to the programming port.

IP67 Protection

IP67 Standard for being waterproof and dust-proof for various weather conditions, and driving surfaces.

Note: The IP67 protection level mentioned above is splash-resistant, water-resistant and dust-resistant under normal use, and is tested under controlled laboratory conditions. Its effect is in the GB / T 4208-2017 (domestic) / IEC 60529 (overseas) standard to IP67 level. Splash, water and dust resistance are not permanently effective, and the level of protection may decline due to ageing.

High reliable electronic switch design prevents mechanical switch failure due to dirt, water, dust etc.

Multiple protections: low-voltage cutoff protection, thermal protection, and throttle signal loss protection.

Separate programming port to easily connect the LED program card to the ESC.

Single-button ESC programming and factory reset.

ESC programming via Hobbywing LED program card - HW30501003

Specifications

Scale - 1/10th
Brushed/Brushless - Brushed
Waterproof - Waterproof

Cont./Peak Current - 80A/400A
Input Voltage - 2-3S Lipo
BEC Output - Switch Mode: 6/7.4/8.4V@3A, 6A Peak.

Wires & Connectors
Input Wires - Black-14AWG-200mm / Red-14AWG-200mm
Output Wires - Yellow-14AWG-200mm / Blue-14AWG-200mm
Input Connectors - XT60 Connectors
Output Connectors - 4.0mm Bullet Connectors (Female)
(Note: All the wire length above is the original length not the length you see from the outside.)

ESC Programing via
SET Button on ESC - Supported
LED Program Box - Supported
LCD Program Box - Not Supported
WiFi Module - Not Supported
Program Port - Separate Program Port

Firmware
Firmware Upgrade - Not Supported

Size & Weight
Size - 37.2X31.9X18.4mm
Weight - 70.2g (w/Wires)

Applications
Motors - Brushed Motor (540/550 Size Brushed Motors)
Vehicles - 1/10th Rock Crawlers


-----------------------

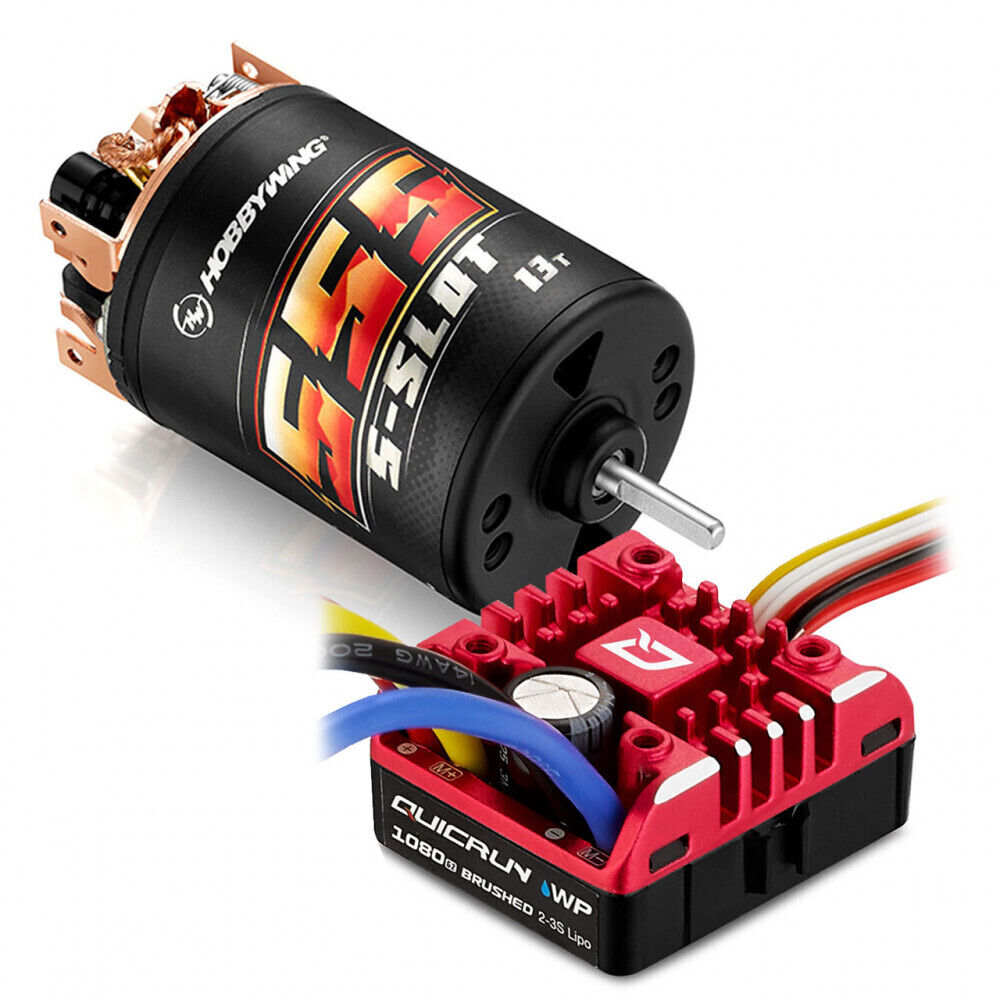

Introducing the Hobbywing Quicrun brushed motors.

Outstanding Response and Control
The new Quicrun brushed motors offer improved performance, reliability, and response over other motors. With improved materials and overall design, these motors offer significant power gains.

Excellent efficiency
With up to 69% maximum efficiency, the Quicrun brushed motors far exceed standard motors of the same specifications (555-11T). The maximum efficiency is up to 17% higher. These new motors run cooler (Lower temps) than similar motors under the same load.

Zero Cogging Torque Design
The 555 motor adopts a 5-slot design, and the motor cogging effect is virtually eliminated. These new motors have a very small torque fluctuation and, bring a very linear response at all speeds for an improved overall drive feel.

Adjustable mechanical timing of the motor
The mechanical timing of the motor can be adjusted by -20 — 20 °. This allows users to fine-tune the RPM and feel of motors. Timing adjustments also allow the motors to be used for CCW and CW applications.

Specialized Carbon Brush for extended life
Developed specifically for these motors, the new brushes feature a custom blend to provide extremely long life, while providing great performance. These motors start to compare to brushless motors in terms of life span.

Modular design for easy service and cleaning
The motors feature an easy-to-service rebuildable design. Convenient for cleaning and maintenance, effectively prolonging the life span and maintaining the efficiency of the motor.

PCB anti-interference board
The motor is equipped with a dual PCB anti-interference board. These reduce the harmful spikes and noise from affecting your speed control.

Quality materials
To ensure high tolerance to abuse and heavy-duty driving, a 200°C high-temperature resistant magnet, 180°C high-temperature resistant copper wire has been used. Combined with 0.35 mm (only 555) ultra-thin silicon steel sheet, and the Hobbywing custom carbon brush, these motors are built to handle the demands of today's driver.

Specifications

Type

Scale - 1/10th 550
Brushed/Brushless - Brushed
Turns - 13T

Relevant Parameters

[email protected] - 14000
Input Voltage - ≥12.6v
Slot - 5

Size & Weight

O.D.(mm) - 36
Length (mm) - 58.5
Shaft Diameter (mm) - 3.175
Weight (g) - 193

1/10th Crawler / Short course truck / Monster truck
