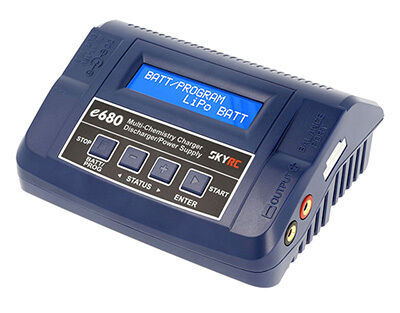

The SkyRC e680 Universal Charger is easy to use and at the same time offers a variety of features.

All popular battery types such as LiPo/LiIon/LiFe/LiHV/NiMH/NICd/Pb and the system battery of the DJI Mavic are supported by the microprocessor controlled SkyRC e680.

All common loading and unloading modes such as charge, ballance charge, fast charge, storage and discharge are mastered. Especially in the Pb program, the charger offers an AGM and cold charging mode. Also DJI Mavic batteries are supported with their own mode (optional charging cable SK600023-06 necessary).

In addition, the e680 can directly supply consumers such as tire sander, LED pit lights, motor testers etc. with 13.8V and 80W max power via the power supply function.

Features:

Excellent performance max. 8A / 80W
Integrated power supply functionn 13.8V/80W
10 battery memory
TVC Terminal Voltage Control
Internal balancer with XH connector
Simplest 4-key operation
AGM and Pb cold charging modes
Suitable for LiPo/LiHV/Lilon/LiFe/NiCd/NiMH/Pb and DJI Mavic batteries

Specifications.

Input Voltage AC: 100V -240V
Input Voltage DC: 11V - 18V
Max Charge Power: 80W
Max Discharge Power: 10W
Charge Current Range: 0.1A - 8.0A
Discharge Current Range: 0.1A - 2.0A
Balancer current: max. 300mAh
Cells: LiPo/LiFe/LiIon/LiHV 1s - 6s
Cells: NiMH/NiCd 1s - 15s
Pb Battery Voltage: 2V - 20V
Weight: 390g
Dimension: 135x110x60mm
