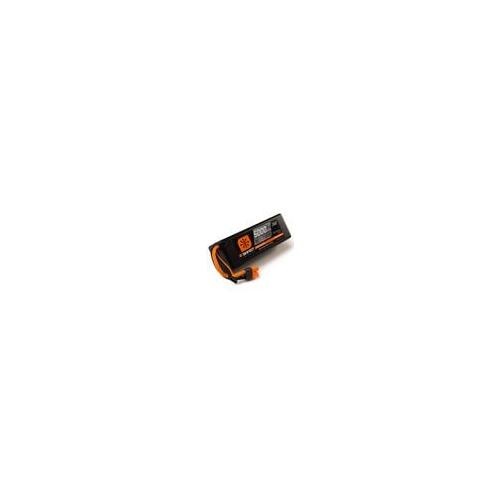

Spektrum 5000mah 3S 11.1V 30C, HC, IC3 - SPMX50003S30H3

PRODUCT SPECIFICATIONS

Type:

Smart LiPo

Capacity:

5000 mAh

Voltage:

11.1V

Connector Type:

IC3

Cell Size:

3.7V

Number of Cells:

3

Weight:

0.90 lbs. (410g)

Configuration:

Hardcase

Dimensions (WxLxH):

5.45 x 1.83 x 1.38 in. (138.5 x 45.6 x 35mm)

Length:

5.45 in. (138.5mm)

Width:

1.83 in. (46.5mm)

Height:

1.38 in. (35mm)

Application:

Surface

Maximum Continuous Discharge :

30C

OVERVIEW

Key Features

-Spektrum Smart Technology Makes Charging and Maintaining Batteries Easy
-Integrated Microchip Stores Unique Parameters for Each Battery
-New IC3 and IC5 Connectors are Compatible with EC3 and EC5
-Save Time and Hassle, while Improving Battery Life
-Smart Discharge Allows Batteries to Automatically Discharge to a Safe Voltage

Smart™ Technology Overview

LiPo batteries with Spektrum Smart™ technology practically take care of themselves. When combined with a Spektrum™ Smart Battery Charger, the unique parameters, history of the battery and more are all available the instant it’s connected. Charging a Smart Battery is easy as it gets, plus Smart LiPo battery packs are programmable to meet your exact charging needs. But the crowning feature of a Spektrum Smart LiPo battery is that it can be programmed to safely self-discharge to storage condition. That’s a Smart Battery pack!

Spektrum Smart technology is about offering a higher connection to your hobby. It’s a connection that puts you in complete control, makes you more aware and more confident about the capability of your equipment—all the while making your hobby easier. The combined result will make you wish everything about your hobby was “smarter.” Spektrum Smart LiPo Batteries are a part of a wide series of Smart technology products now available.

Feature Overview

You’ll never have to set charge preferences for a Spektrum Smart battery until you want to. When a Spektrum Smart LiPo battery is connected to a Spektrum Smart charger, unique parameters and health of that Smart LiPo battery upload from the Smart memory microchip integrated into the battery. Through the charger, you can view and set preferences, such as charge rates, so that all you have to do to charge the pack every time is press the charger “Start” button. Smart technology takes care of the rest.

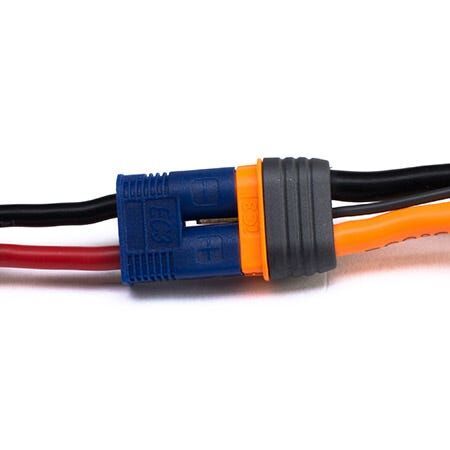

Every Smart LiPo battery is factory assembled with the next-generation IC3™ or IC5™ output connector that’s conveniently compatible with older devices equipped with robust EC3™ and EC5™ connectors. You can use Smart Batteries with older systems, but only when connected to a Spektrum Smart device will all the benefits of Smart technology become obvious.

Spektrum Smart LiPo Batteries Store Unique Data, such as:

-Battery Brand
-Battery Type
-Battery Capacity
-Battery C Rating
-Individual Cell Voltage
-Battery Temperature
-Charge/Discharge Cycles

Spektrum Smart LiPo batteries also maintain an error log including the number of over-heat, over-discharge and over-charge incidents which can be helpful data in assuring that the battery you’ve chosen is right for the application. A Smart Battery uploads its charge parameters to a Spektrum Smart Charger automatically making charging as simple as pressing the “Start” button. The charge rate of every Smart Battery is customizable, allowing you to take full advantage of packs with faster charge ratings.
