The Evolution of An Icon

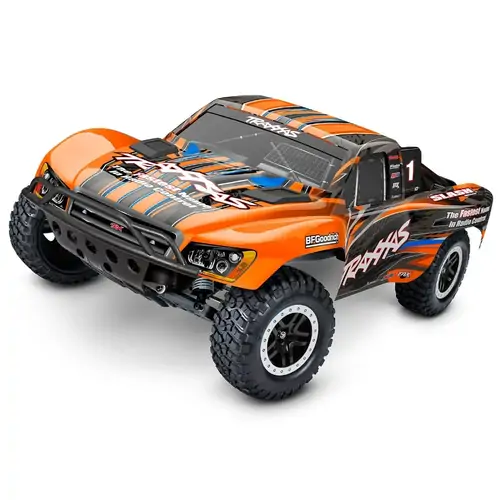

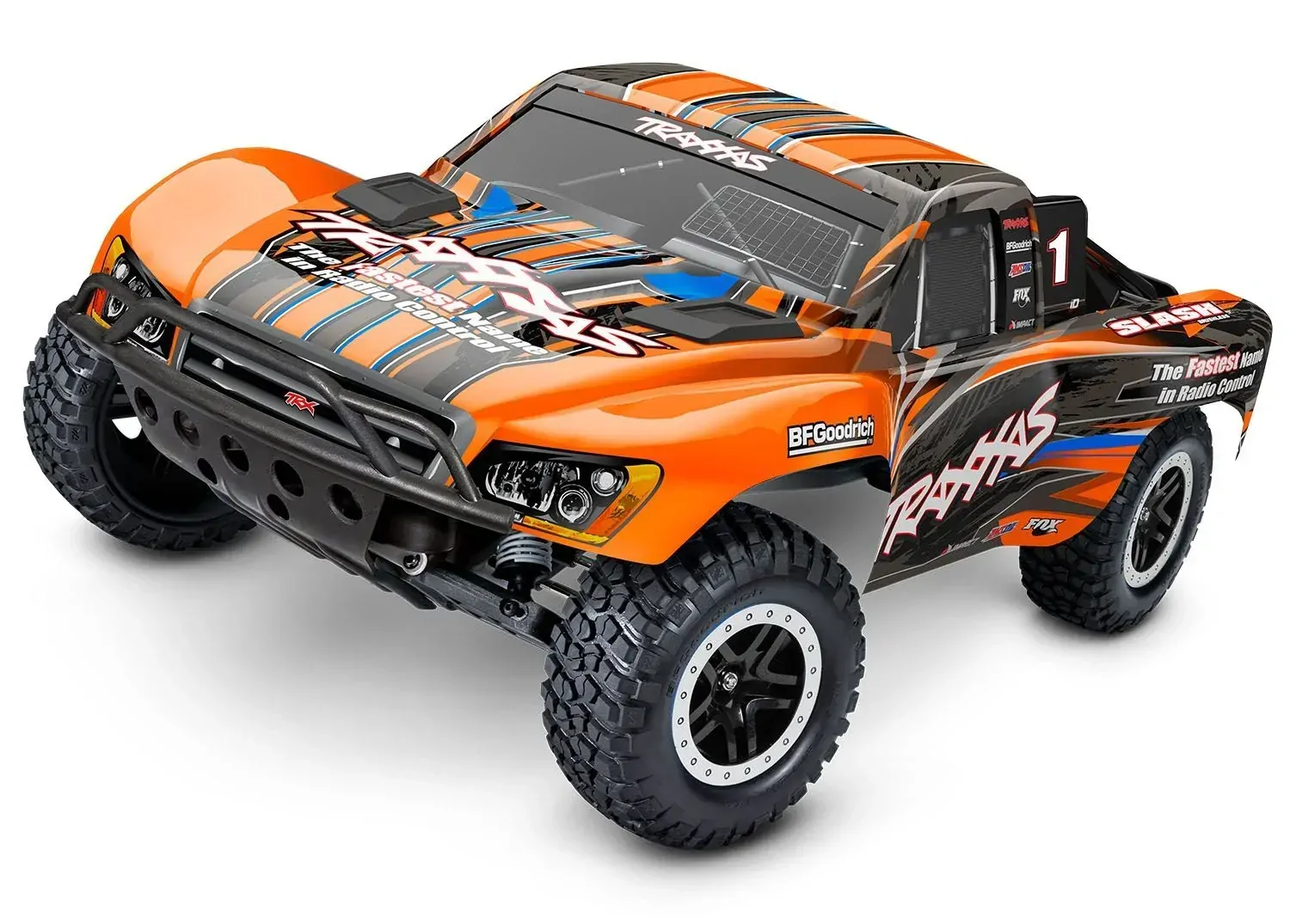

Traxxas Slash ® puts you in the driver € s seat for intense fender-to-fender short course racing action at the track, or in your own backyard. Slash € s all-new BL-2s „ ¢ brushless power system delivers effortless power for all-day fun with a more responsive throttle and powerful acceleration. The rear-wheel drive Slash is purpose built to fly over jumps and rip full-throttle through the turns. The fully adjustable track-ready suspension replicates real-world dynamics for the most authentic short course racing experience possible.

Features

Clipless Short Course Body

• Tough front and rear tube-style bumpers
• Body reinforcements to prevent pull-through damage
• Holds tight for intense action
• Quick and easy removal
• Smooth appearance with no body posts or clips

TQ „ ¢ 2.4GHz Transmitter

• Full-size 2-channel transmitter
• All-day comfort with precise long-range control

3300 kV Brushless Motor

• Integrated cooling fan
• Low-maintenance design
• Efficient ball bearings
• 3300 kV

BL-2s „ ¢ Waterproof Electronic Speed Control

• Heat sink accepts accessory cooling fan (3340)
• Three Programmable Drive Profiles
• Sport Mode - Forward / Brake / Reverse
• Race Mode - Forward / Brake
• Training Mode „ ¢ - 50% Forward / Brake / 50% Reverse (patented)
• Traxxas EZ-Set ® one-button setup
• Built-in two-stage low-voltage detection for LiPo batteries
• NiMH battery packs: 6-7 cells (7.2 to 8.4 volts)
• LiPo battery packs: 2 cells (7.4 volts)

Steering

• Chassis-mounted high-torque 2075 servo
• Dual bellcrank design with integrated servo saver

Suspension

• Oil-filled Ultra Shocks „ ¢
• White powder-coated progressive springs

Chassis

• Extended modular composite tub design
• Secure battery hold-down latch
• Side nerf bars for impact resistance

Transmission and Driveline

• Heavy-Duty Magnum 272 „ ¢ metal-gear transmission
• Torque-Control „ ¢ slipper clutch
• Planetary gear differential with steel ring gear
• External gear cover with easy clutch access
• Heavy-duty telescoping driveshafts

Wheels and Tires

• SCT dual-profile wheels
• 2.2 € ³ outer diameter, 3 € ³ inner diameter
• Replica BFGoodrich ® Mud Terrain T/A ® Tires

Hex hardware with Rust-Resistant Black Oxide Coating

Sealed Ball Bearings

Contents

• Slash 2WD with BL-2s ESC and 3300 kV motor
• Quick Start Guide
• TQ „ ¢ 2.4 GHz radio system
• High quality maintenance tools

Requires

Batteries

Slash requires a single NiMH or LiPo battery. See full list of batteries.

Charger

Traxxas EZ-Peak Live charger (2971) is recommended for easy and fast charging performance.

AA Alkaline Batteries

Four AA alkaline batteries for the transmitter.
