Description

XRAY XT2C'24 - 2WD 1/10 ELECTRIC STADIUM TRUCK - CARPET EDITION

2024 All-new Features:

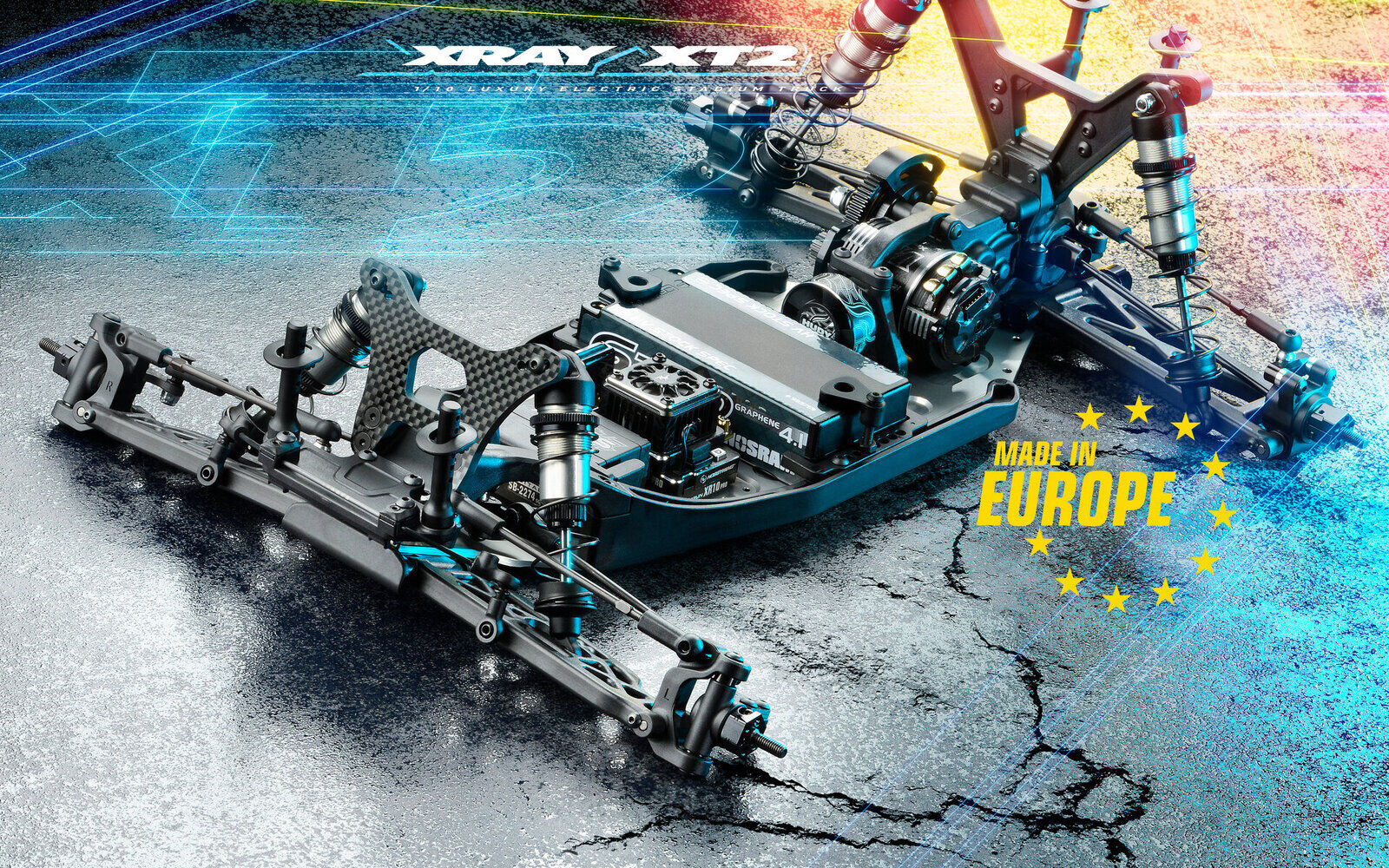

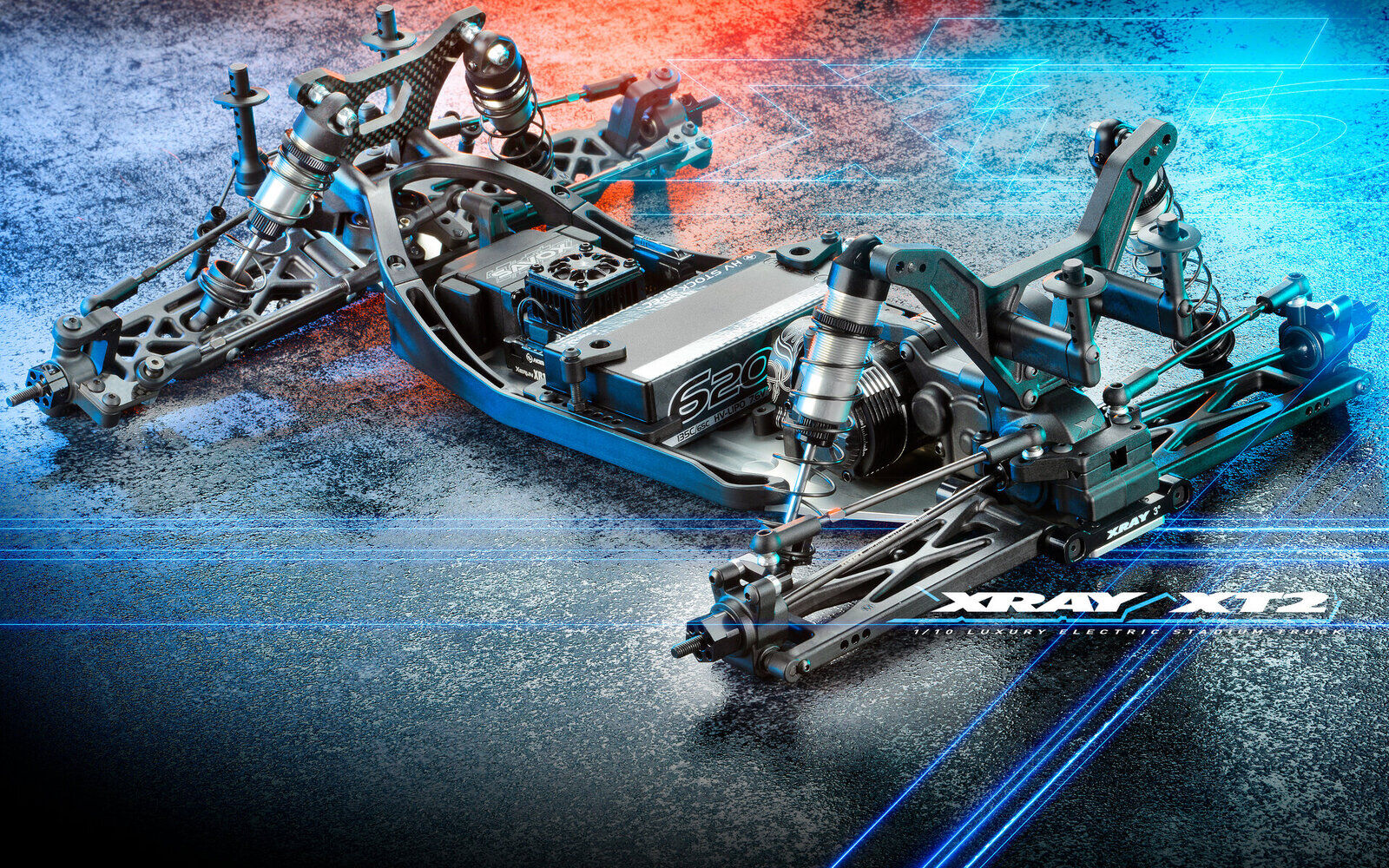

  • New one-piece chassis design with integrated kick-up eliminates the lower brace and improves suspension geometry
  • The wider chassis shape fits the latest batteries and has a milled pocket under the servo area for improved flex and optional weight placement
  • New elevated side braces improve flex characteristics and integrate with the new front upper deck
  • The completely new front upper deck’s bridge design integrates with the new steering system and moves the shock tower forward with the shocks behind the tower
  • A new steering plate, steering arms and posts provide a wider range of geometry adjustments and improved steering response for easier control
  • New 2 dot steering extensions match the new steering system geometry, working together to improve the steering angles and responsiveness
  • Front roll center holder features the two most common inner camber link positions for simplified setup
  • Front shock tower integrates with the upper deck, placing the shocks behind the tower
  • All New 13.2mm shock design features new shock bodies, 2.0 and 2.5mm piston choices, shock caps, nuts and shock shafts
  • The 13.2mm shocks use a new X-ring design for improved seal without excess friction for improved shock operation
  • New conical springs have been selected to work with the new 13.2mm shock package
  • RF and RR suspension holders move the inner pivot wider and alter geometry to 3 deg of integrated toe (w/ 0 inserts) for increased stability on all surfaces
  • The improved gear diff (XT2C) with new diff case and new diff outdrives unifies drive shaft lengths between ball diff and gear diff
  • The included 97mm driveshafts will work with both the ball diff and gear diff for simplified parts needs and easier differential changes between surfaces
  • Rear uprights with new lower roll center position improves stability with better resistance to collapsing in high-speed corners
  • Medium composite steering blocks, C-hubs and uprights provide additional durability out of the box
  • Optional stainless steel weigh plate matches the new chassis cutout and uses tapered holes for easier installation and weight balance adjustment
  • Wire organizer helps maintain clear electronics installation
  • 30mm Fan Holder for additional ventilation

Requires:

  • All Electronics
  • Tyres
  • Paint for Body Shell
Read More
Specifications
SKU XY320208
Brand XRAY
